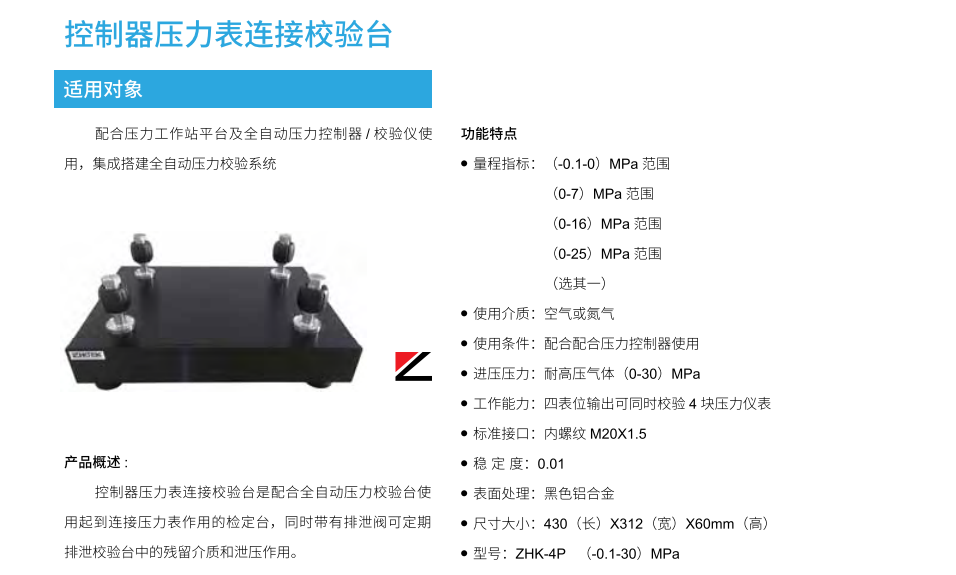

Controller pressure gauge connection calibration bench
Product application: applicable to the calibration connection of any (- 0.1-60) MPa pressure instrument
It is applied to the pressure calibration of pointer pressure gauge, pressure sensor, differential pressure sensor, spring tube and pressure sensitive element, and is used for batch calibration, verification and connection expansion.
Applicable to:

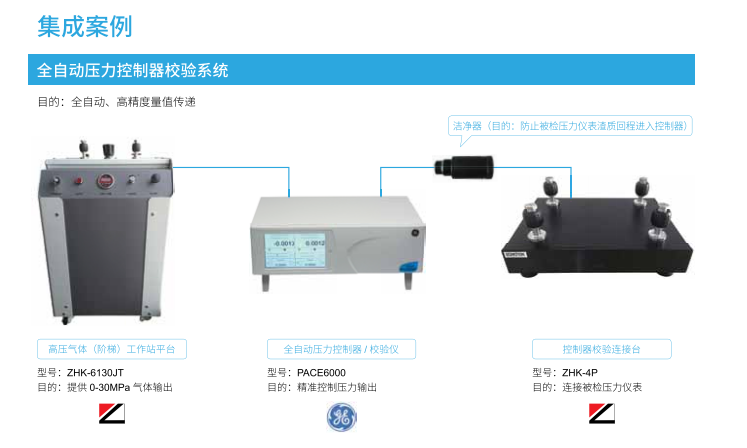

With the use of the pressure workstation platform, the full-automatic pressure controller / calibrator builds a large-scale and wide-ranging pressure calibration system
Product overview:
With the use of the pressure workstation platform, the full-automatic pressure controller / calibrator builds a pressure calibration system with large quantity and wide range. At the same time, it is equipped with an automatic blowdown valve, which can regularly drain the residual medium and drainage effect in the calibration table
Functional features:
v Four gauge internal thread m20x1 Standard output of 5
v Medium: air or nitrogen or liquid
v Pressure range: (- 0.1-60) MPa
v Regularly drain the residual medium in the calibration bench with pressure relief valve
v Working capacity: four meters are output, and four pressure instruments can be verified at the same time
v Service conditions: used with pressure controller / calibration bench
v Standard interface: internal thread m20x1 five
v Stability: 0.01
v Material selection: aluminum alloy
v Surface treatment: black sand blasting
v Structure: Desktop
v Size: 430mmx312mmx70mm
v weight (about): 2kg
v Model:ZHK-4P
